Professional Expertise
Specialized in service for WENZEL WGT gear measuring machines
For Sale – Wenzel WGT350 XL gear and rack measuring machine
For sale – Wenzel WGT350 XL gear and rack measuring machine
• Max. Rotary table Workpiece diameter = 5 bis 400mm
• Max. Rotary table load = 180kg
• Axis X= 1800mm Y=200mm Z=650mm
• Tailstock measuring range = 20 bis 900mm
• Modul range from 0,5mm
• Max. Rack length = 1200mm
• 6x Probe changer inkl. 6x SP600M probe plates
• Machine temperature compensation
• Machine air damping
• Build in 2006
• Accessories such as, driver, reference ball etc. as shown
• Jaw chuck D=200mm with inside and outside jaws
Included Softwaremodules:
• TMain – Programm Management
• TStylus – Stylus Management
• TCali – Stylus Calibration
• TAmo – Axis Workpiece Alignment
• TGear – Spur and helical gear measurement
• TShaft – Software for Dimension for form, position elementes, diameters,
lenght etc.
• TWorm – Worm measurement
• TRack – Rack measurement software
• TReverse – The parameters of an unknown gear, module (mn), helix angle (ß)
and pressure angle (a), can be determined wit TReverse.
• Statistic – Statistical evaluation for gears, bevel gears and worms
For Sale – Wenzel Inova Gear machine
For sale – Wenzel Inova Gear gear measuring machine
• Max. workpiece diameter= 50 to 270mm- Max. tableload = 50daN
• Axes travel X= 350mm Y=250mm Z=500mm
• Tailstock travel = 20 to 450mm
• Modul range from 0,5mm
• Installation area = 2,17m²
• Build in 2011 – the machine is overhauled
• Accessories like, dog carrier, fixtures and reference sphere as shown
• Including 6 jaw chuck with 125mm diameter
Included Softwaremodules:
• TMain – Programm Management
• TStylus – Stylus Management
• TCali – Stylus Calibration
• TAmo – Axis Workpiece Alignment
• TGear – Spur and helical gear measurement
• TShaft – Software for Dimension for form, position elementes, diameters,
lenght etc.
• TWorm – Worm measuremen
What do we offer?
- Service for Wenzel gear measuring machines
- Personal consulting and flexible scheduling
- Attractive and customized pricing
- Customized service solutions
- Short response times
Our Quality Management
ISO 9001:2015
The management system of HACH Calibration GmbH has been officially certified according to DIN EN ISO 9001: 2015 since September 18, 2020. This standard defines the minimum requirements for a quality management system with which all necessary legal requirements as well as customer expectations are to be met.
We have established a quality policy that meets the expectations and wishes of our customers with the best possible quality. On this basis, this policy regulates our dealings with customers, partners, resources and our environment and continuously improves the quality management system.
We are certified by the ICG Zertifizierung GmbH

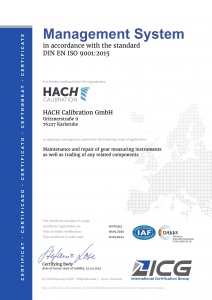

Certificate

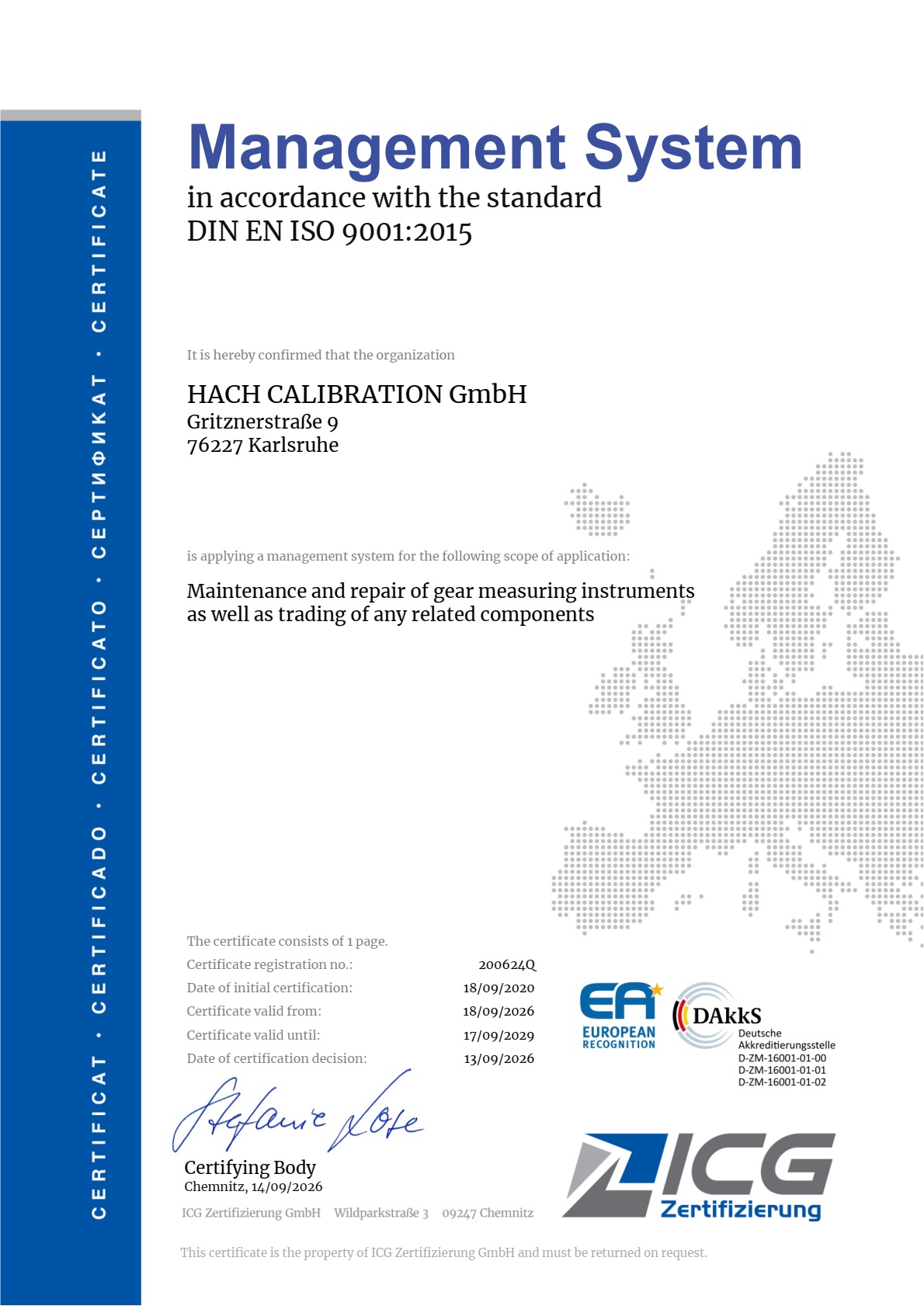

ISO 9001 Zertifikat
